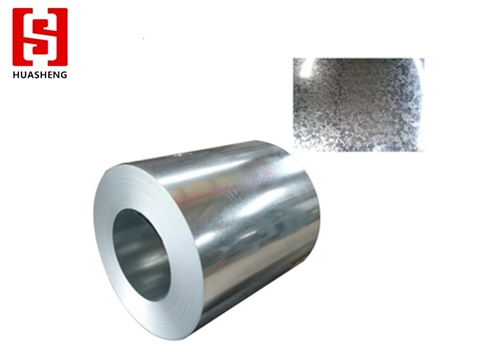

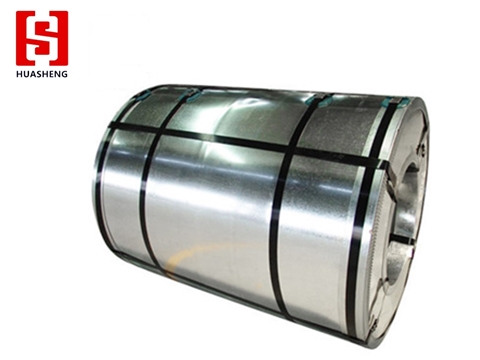

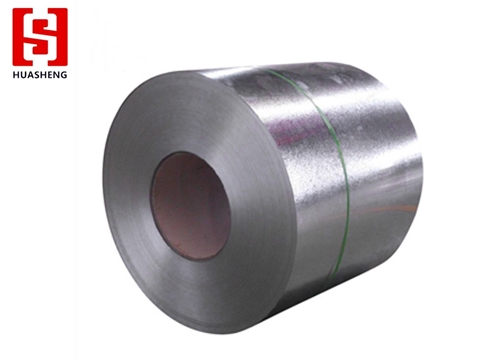

GI regular spangle

The galvanized steel coil is immersed in a molten zinc bath to adhere a zinc-plated steel sheet to the surface. At present, it is mainly produced by a continuous galvanizing process, that is, a steel coil is continuously immersed in a zinc-plated plating tank to form a galvanized steel sheet. An alloyed galvanized steel sheet. This steel sheet is also produced by hot dip, but immediately after it is taken out, it is heated to about 500 ° C to form an alloy coating of zinc and iron. This galvanized roll has good adhesion and weldability of the coating.

产品描述

Commodity:	Hot dip galvanized steel coil and sheet(GI)
Technical Standard:	JIS 3302 / ASTM A653 A792 / EN10143
Grade:	DX51D / DX52D/ DX53D/ S250,280,320GD
Types:	Commercial / Drawing / Deep Drawing / Structural quality
Thickness:	0.12-3.5mm
Width:	600-1250mm(accept slitting or shearing)
Type of coating:	Galvanized
Zinc coating:	Z20-275g/m2
Surface treatment :	chromed / skinpassed/ oiled/slightly oiled/ dry/ anti-fingerprint

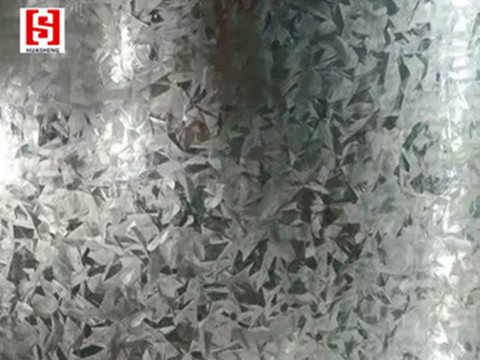

Surface structure:	no / small / regular / big spangle
ID coil:	508mm / 610mm
Coil weight:	2.5-10MT(accept customized)
