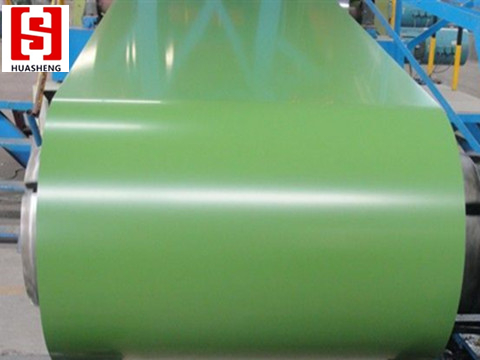

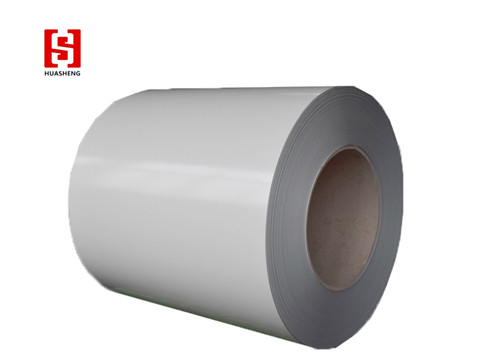

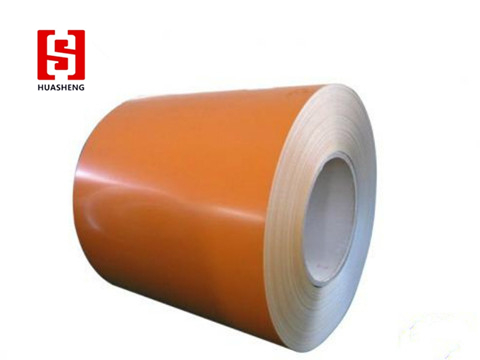

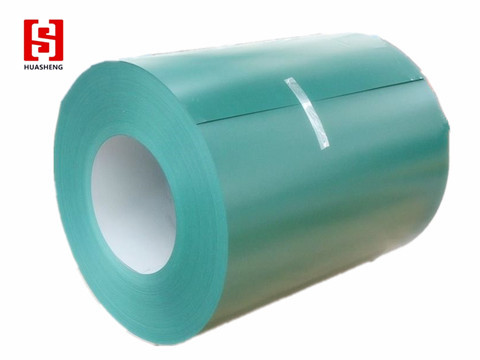

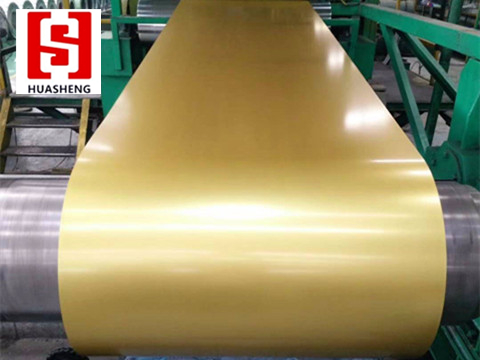

Prepainted Galvalume Steel Coil

The Color coated (Pre-painted) steel coil is made of hot-dip galvanized sheet, hot-dip aluminum-zinc plate, electro-galvanized sheet, etc., after surface pretreatment (chemical degreasing and chemical conversion treatment), and then coating one or several layers of organic coating on the surface, followed by a product that has been baked and cured. It is named for its color coated steel coils coated with various colors of organic paints. The color coated roll has light weight, beautiful appearance and good anti-corrosion properties, and can be directly processed. Mainly used in advertising, construction, home appliance industry, electrical industry, furniture industry and transportation industry.

产品描述

Commodity: Color Coated Steel Coil(PPGI/ PPGL)
Technical Standard:
JIS G3302-1998,EN10142/10137,ASTM A653
Grade:
TSGCC,TDX51D/TDX52D/ TS250,280GD
Types:
For general/drawing use
Base metal:
Galvanized, galvalume, cold rolled steel
Thickness:
0.13-1.5mm
Width:
600-1250mm
Type of coating:
PE , SMP, PVDF
Zinc coating:
Z20-275g/m2 or AZ20-150g/m2
Top painting :
5 mic. Primer + 20 mc. R.M.P.
Back painting:
5-7 mic. EP
Color:
According to RAL standard
ID coil:
508mm / 610mm
Coil weight:
2.5-10MT(accept customized)
